Web Portal Overview

The Web portal offers general information about teams' SIM cards, Quotas, Licenses, VPNs, Modems and Vehicles. The Home Dashboard displays an overview about the status of SIMs, VPNs and Sim Quotas and notifies about expiration and remaining data of the current month.

Additionally there are downloads and release notes on each Software update, detailed information about Events such as an event calendar, venues and Championship overviews and a help section under Documentation available.

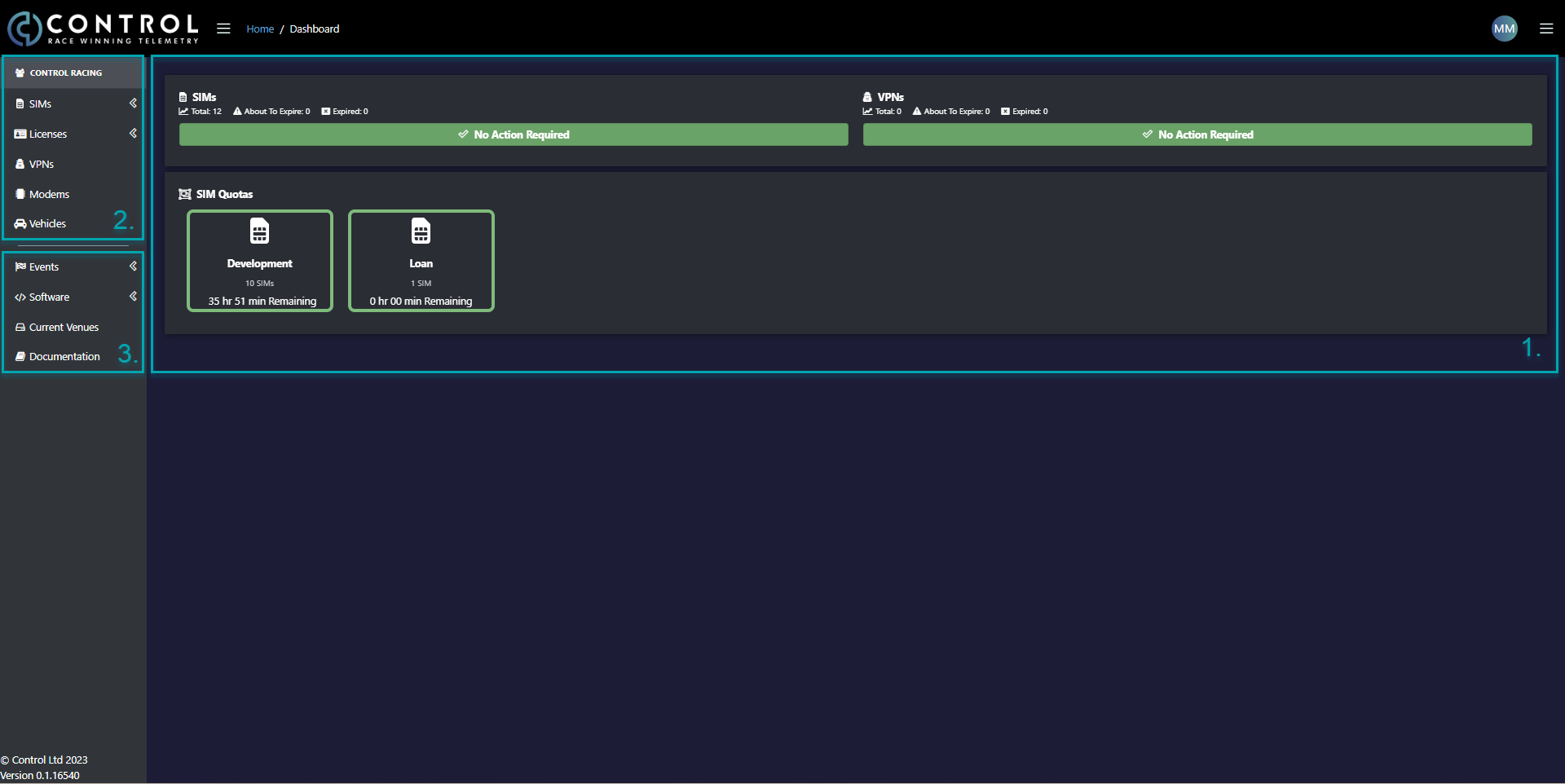

The box under 1. shows the overview of the team's SIMs, VPNs and SIM Quotas for the team you logged in to. It will notify you here, if a SIM or a VPN is about to expire and when.

Under 2. you have the teams' personal area. Opening the SIMs dropdown menu shows you a list of all of your SIMs with further information like their corresponding number, IPv4 address, end dates as well as there state and other. The SIMs dropdown menu also offers you an overview of the historical usage where you can select a specific date to monitor usage and further more, the SIM Quotas, where your used data in hours and percentage as well the KB of the current month for each sim card are displayed.

The License dropdown menu gives you detailed information about the different licenses available for your use with information about the start and end dates, as well as a list of all users with details like email addresses, computer names and start and end dates for the respective license and other.

The tab Modems will display all devices you have purchased or registered to your team with their according serial number as well as the current firmware version.

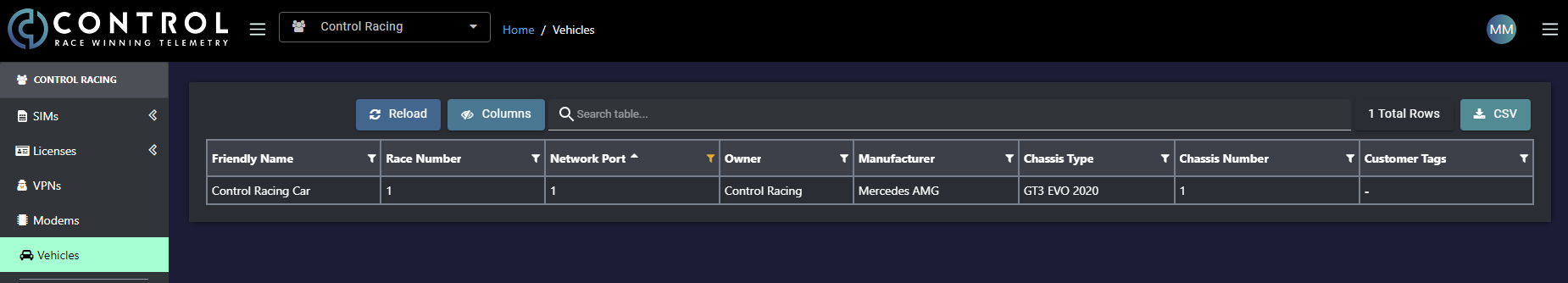

Under Vehicles are all of your teams' cars listed. Here you can also find additional information like Network Port dedicated to your vehicle, current Race Number the car is configured to, Chassis Type and Chassis Number.

In 3. below the teams' area there are some general information located.

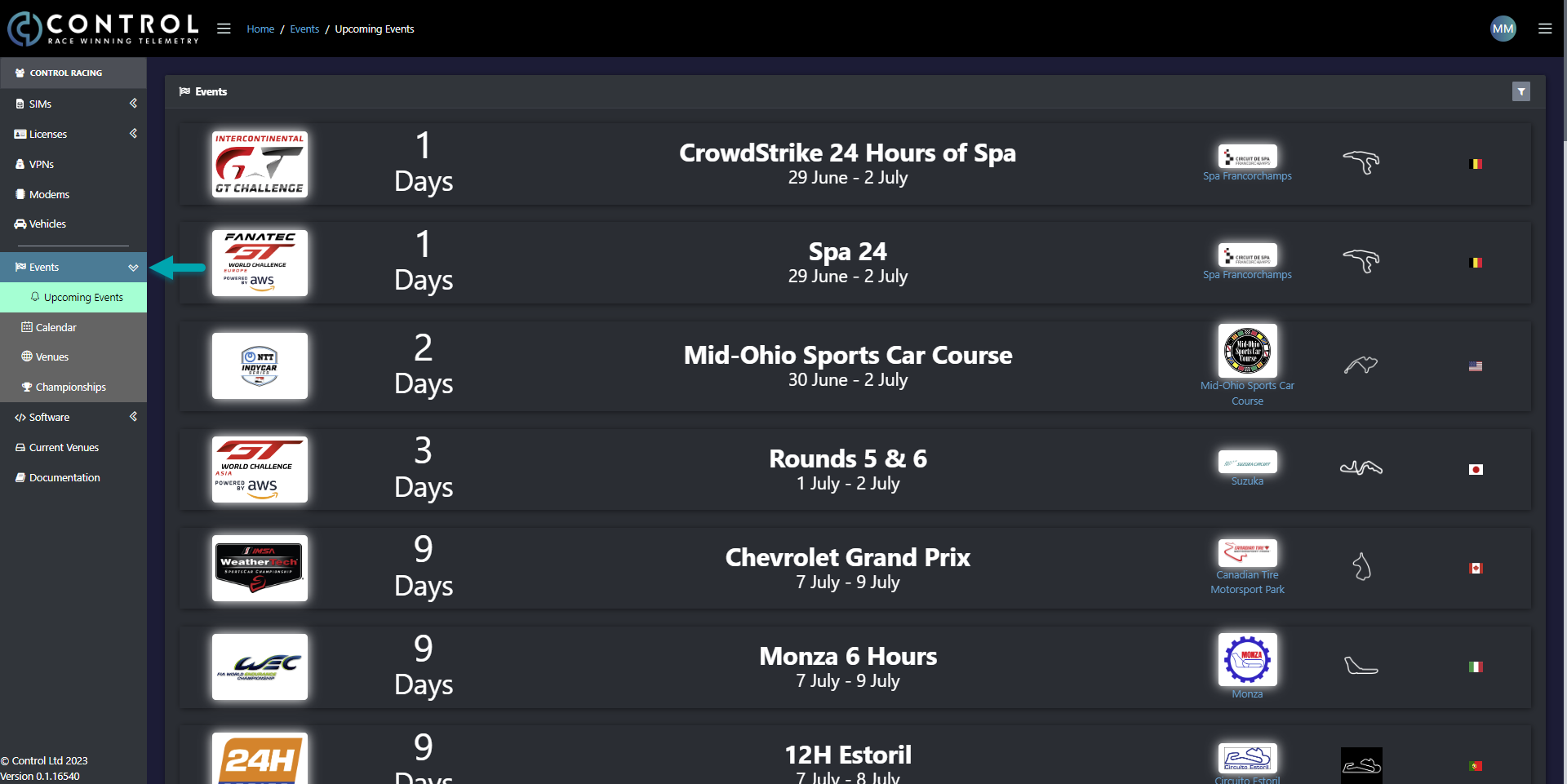

The tab Events opens up a list of Upcoming Events, a Calendar, a list of Venues or Racetracks with Google Maps linked to it and a Championships overview.

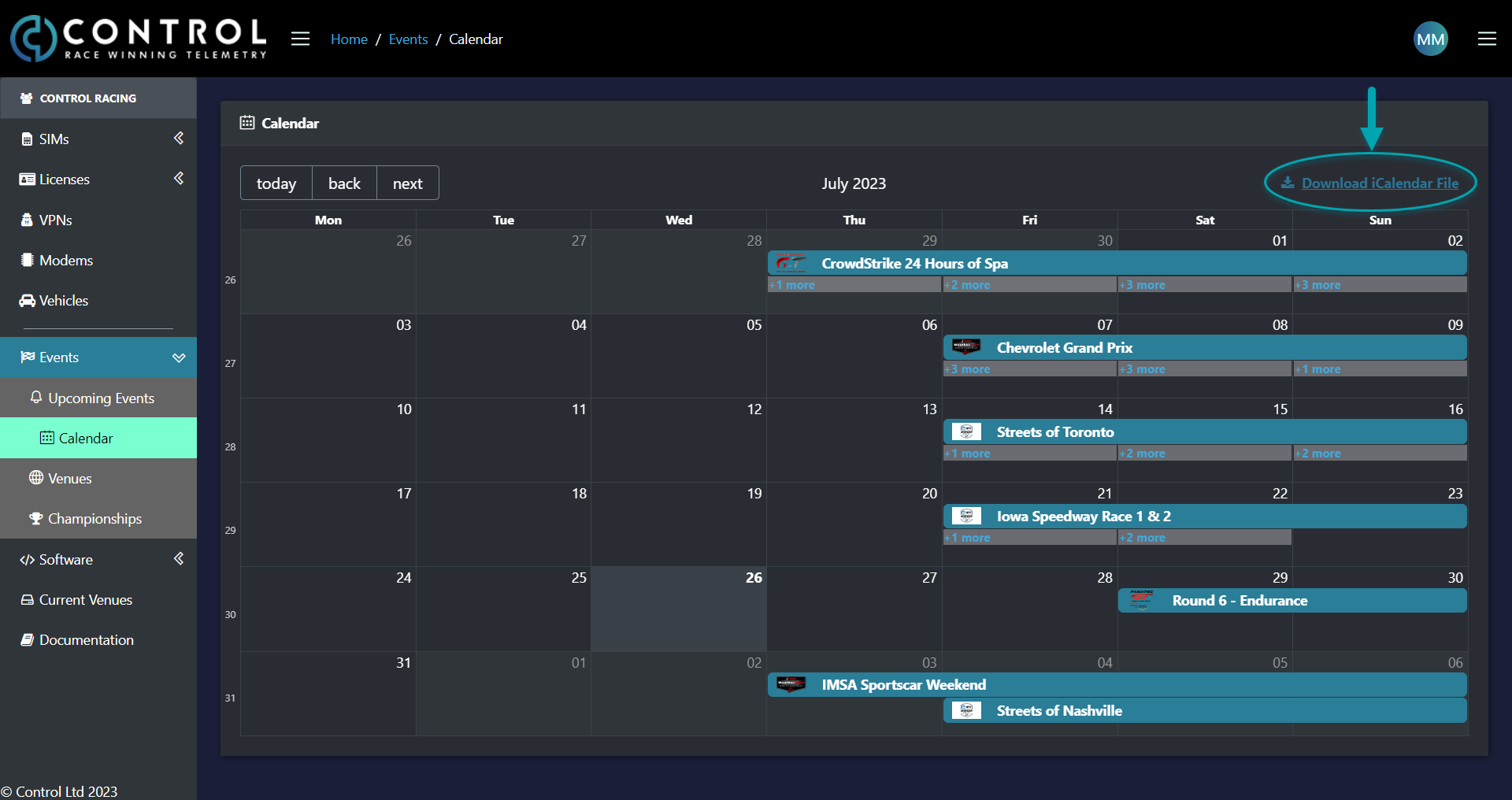

When going to the calendar, you'll have additionally the chance to download our event calendar as an iCalendar onto your device. It will automatically update once new events have been uploaded.

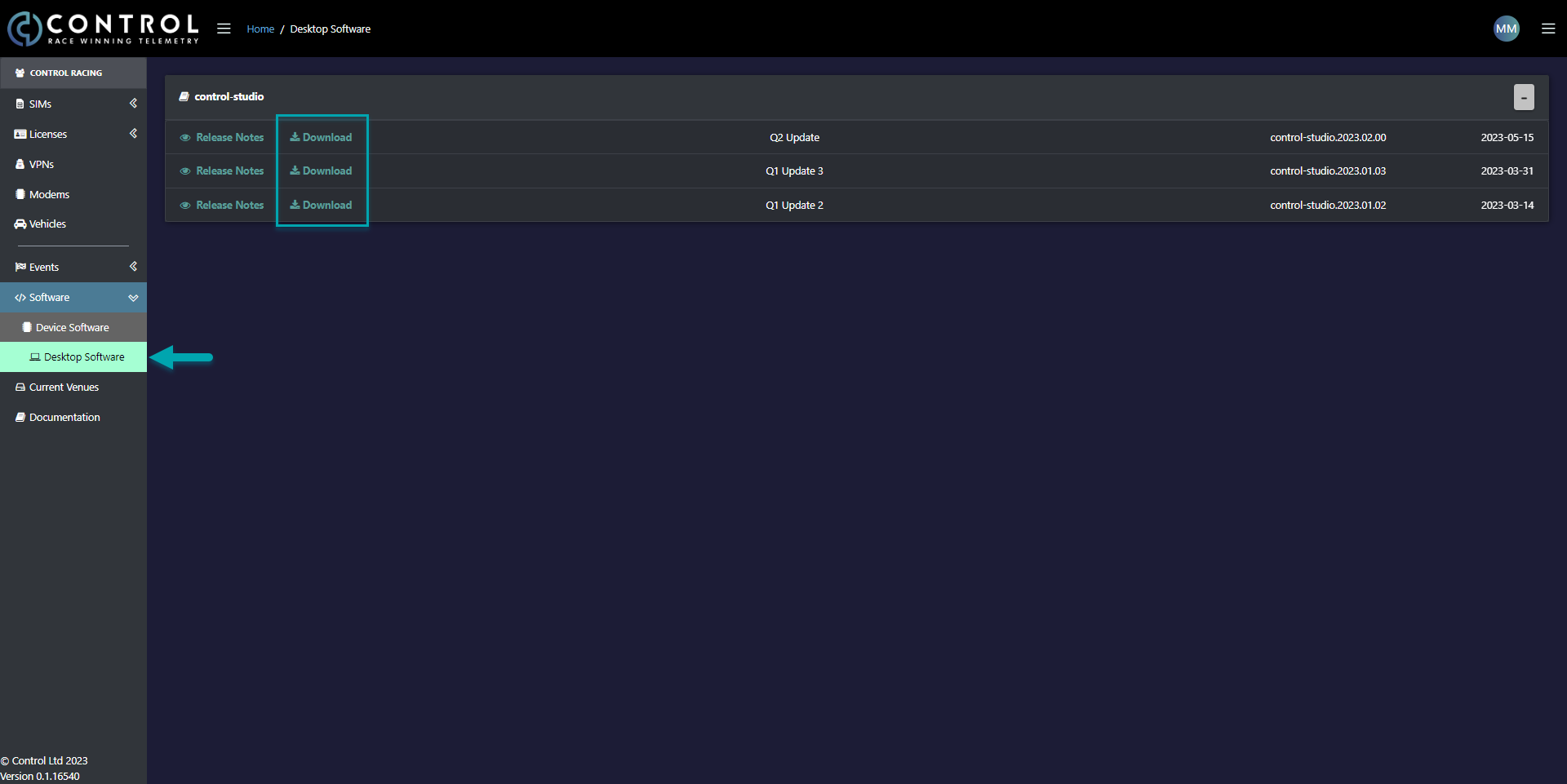

For Downloading the latest versions of Control Studio, go to Software and then Desktop Software. Next to each Download are also the Release Notes for each update located.

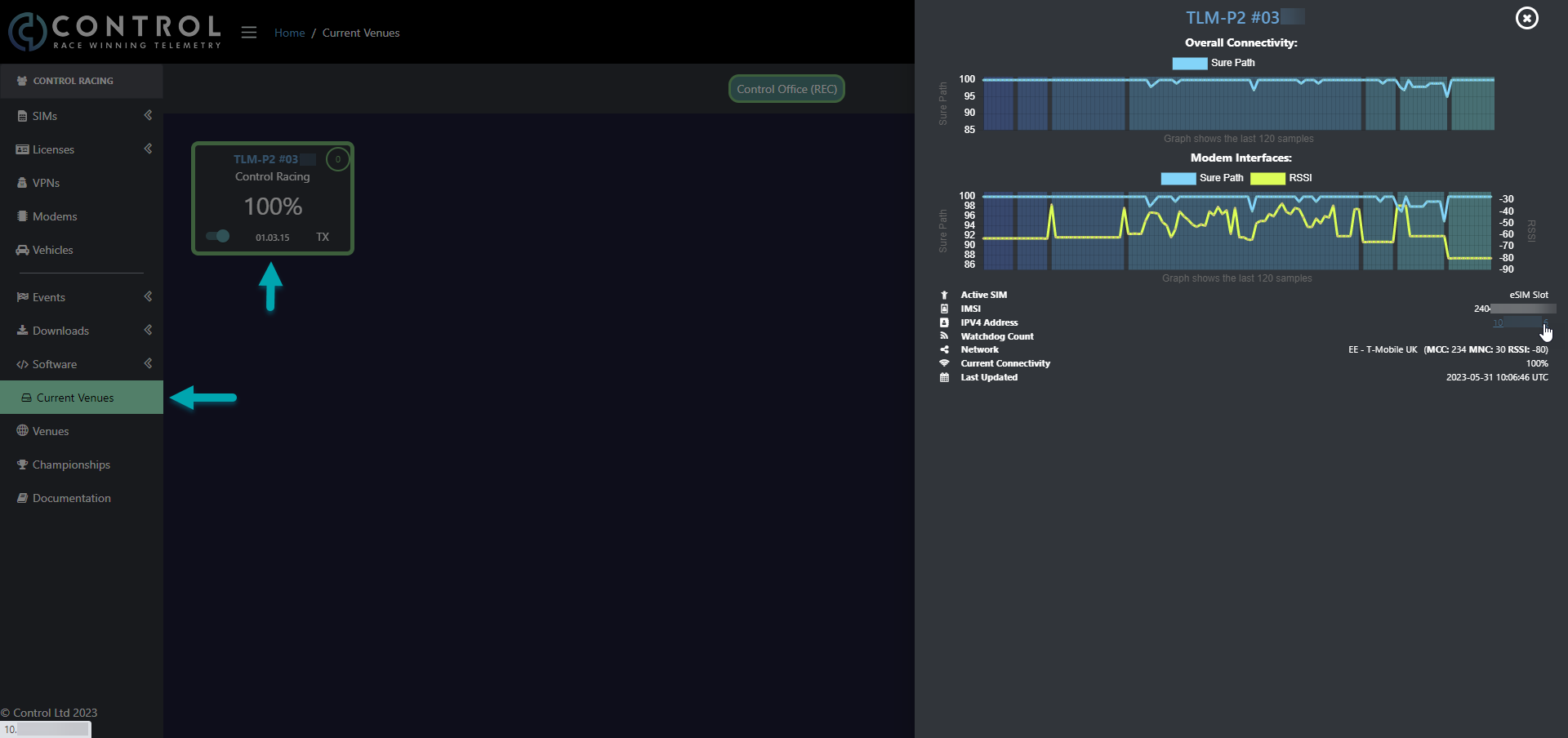

The Current Venues tab shows you your Modems when they are online and allows you to log into their user interface by clicking on the modems IP address.

The last tab opens this Documentation. The Documentation is also reachable via Control Studio by Clicking on Help in the upper task bar and then Documentation.
