Copying Metadata for PI Toolset

If you are using a different computer to receive telemetry than for sending setups to the car, you will need to manually copy the metadata as in PCPrivateDataSets and TelemetryKeys.

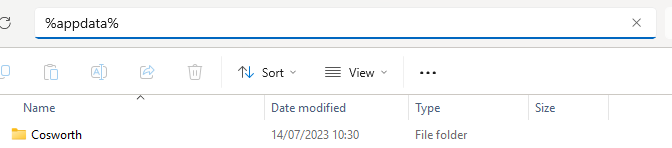

Start with the computer you are sending Toolset setups to the car. Type in %appdata% into the file explorer, hit enter and navigate to the Cosworth folder.

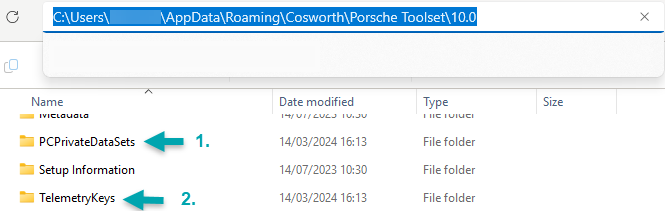

First copy the PCPrivateDataSets over to the same filepath on the telemetry server. Then after copy the TelemetryKeys.

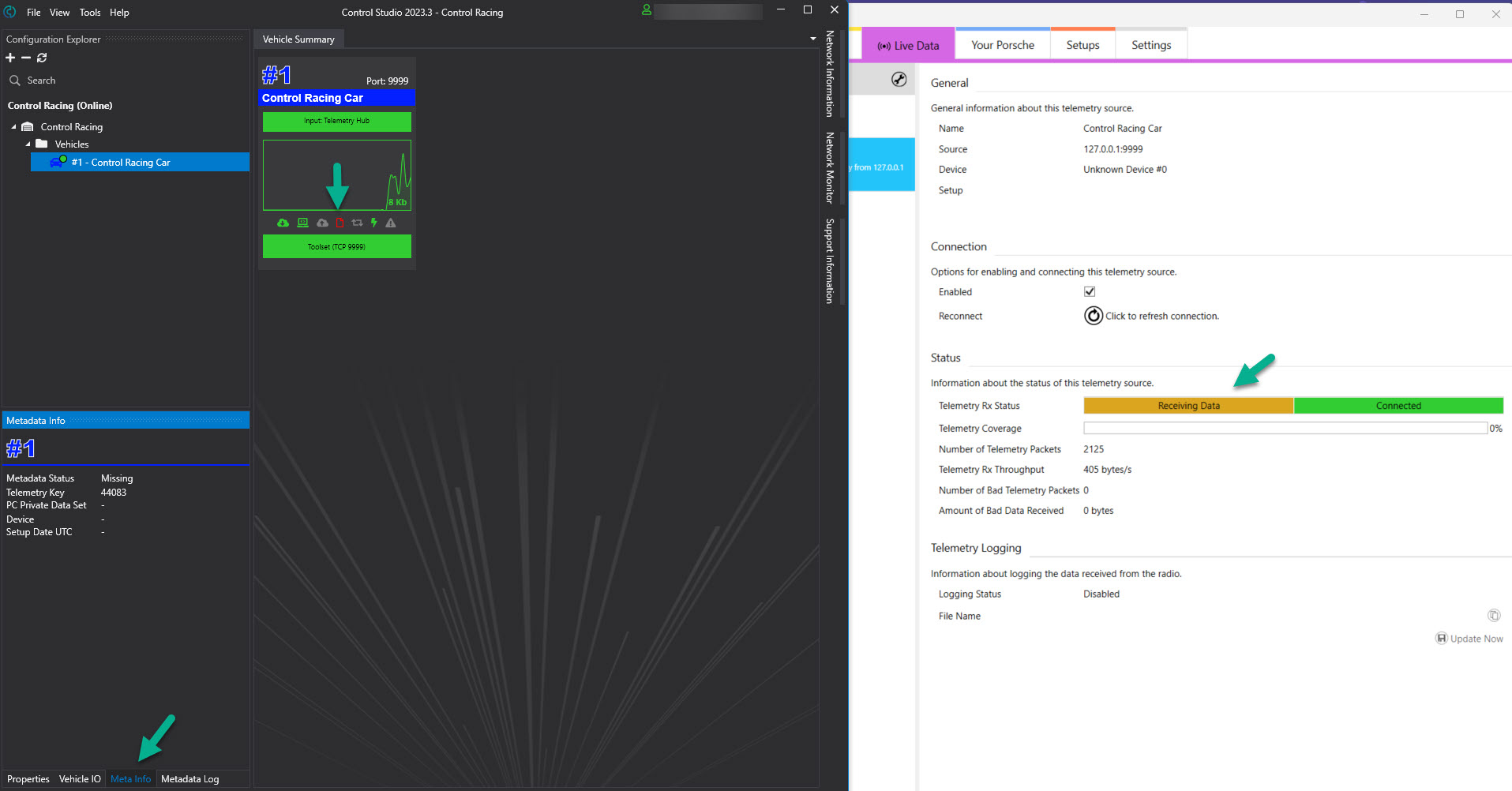

Control Studio will show a red document item under the incoming stream if meta data is missing can tell you which file is needed by either clicking on Meta Info or by checking the Metada Log.

Also PI Toolset will show a yellow bar despite the number of telemetry packets counting up, if meta data is missing.
