Page: Device Config - Setting up Serial, CAN and Ethernet
Edited

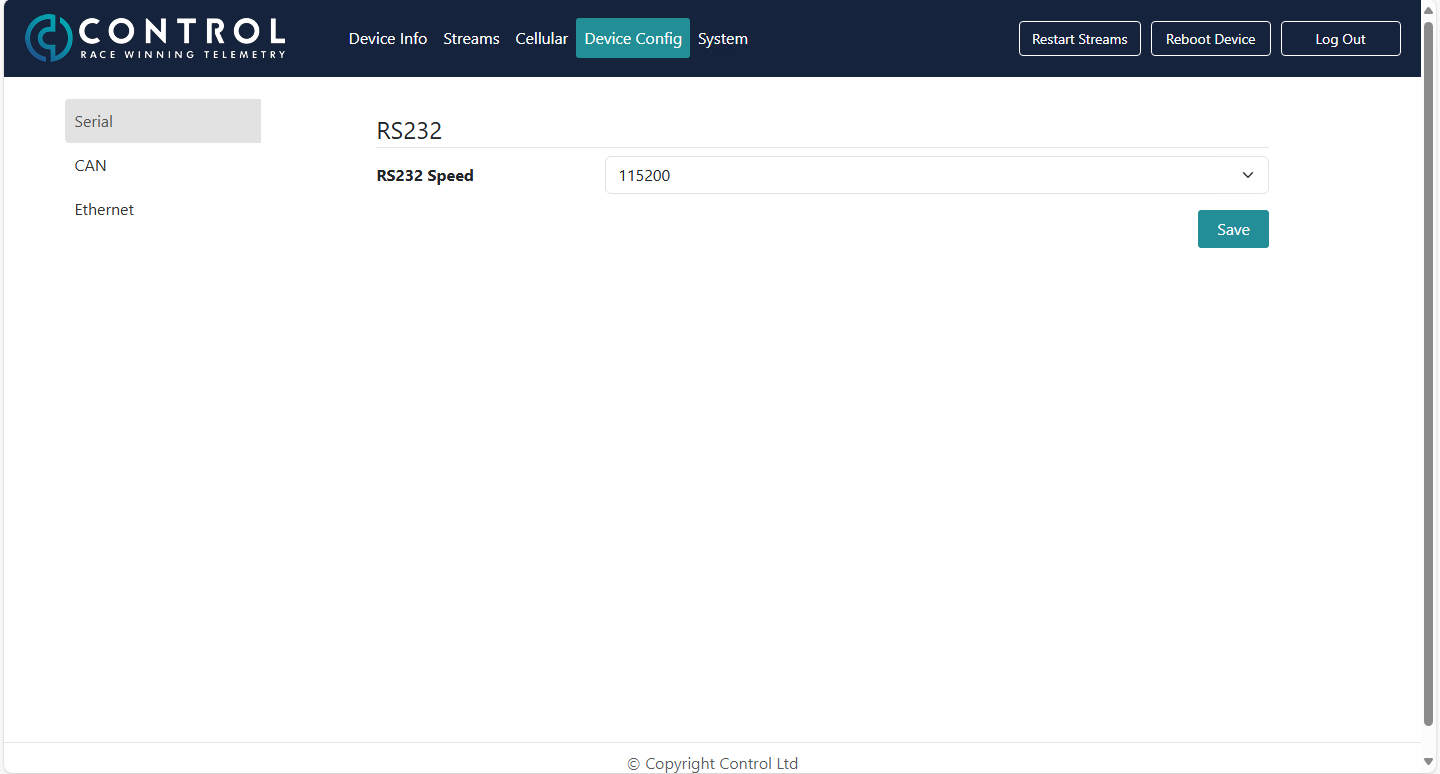

If you are running telemetry over RS232, at the Device Config tab is where you set or change your baud rate.

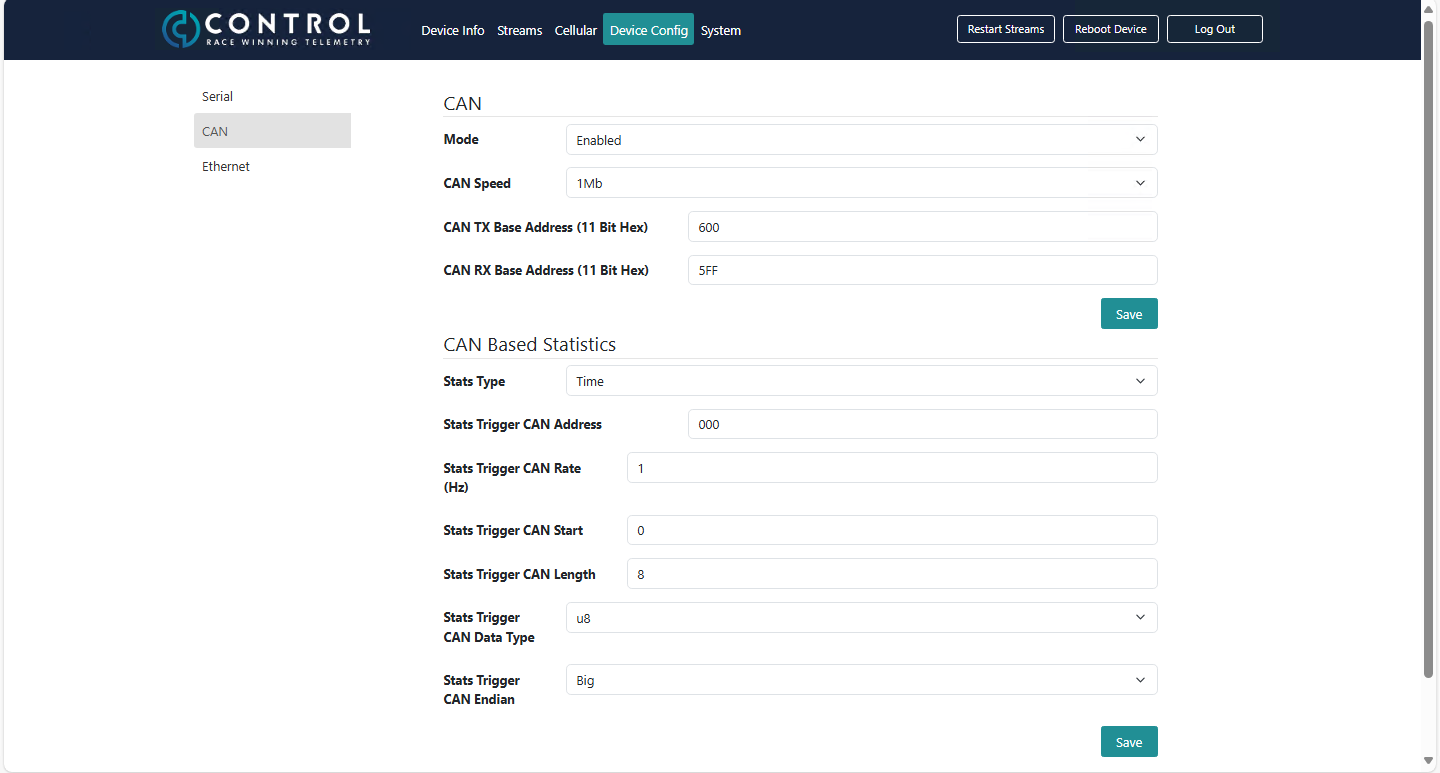

CAN addressing and CAN bus speeds can be adjusted at the CAN page of the Device Config tab. For further detail about setting up CAN, check the CAN subsection for the respective device in this category.

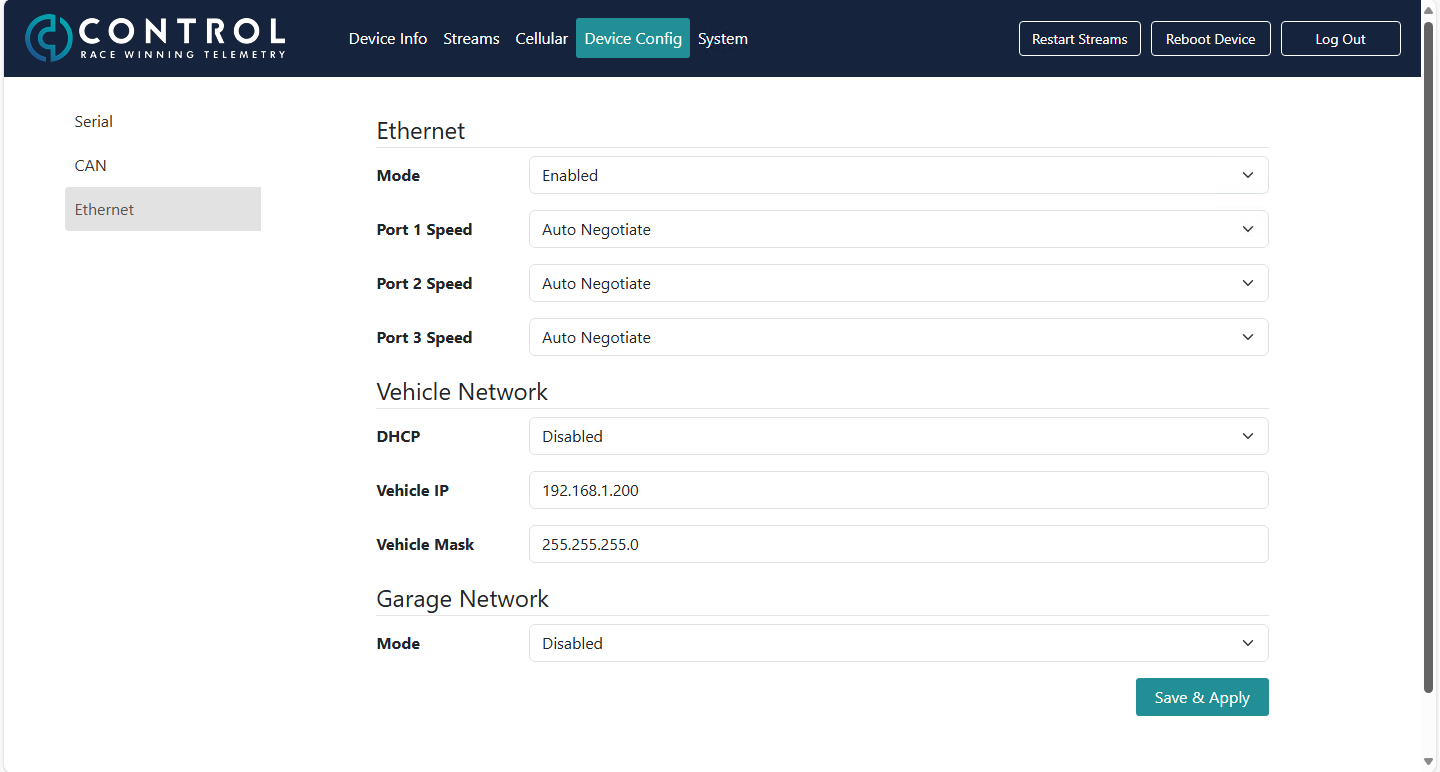

The Ethernet page of the Device Config page allows to set individual speeds up for each port and to configure individual vehicle IP addresses for the logger - telemetry device communication. Please see the articles for the vehicle logger communication how to set ethernet up for a certain logger type.
Under garage network is the IP address set up for the umbilical when using voice over IP.
